DCFR Insight 109 / Cooling + Water Resilience
Water-Resilient Data Center Design: Moving Beyond Annual WUE
A rigorous planning framework for water-source risk, cooling topology, seasonal operations, treatment, storage, drought constraints, and evidence-based resilience.
Annual WUE Is Not a Water-Resilience Plan
Water usage effectiveness can be useful for comparing annual water intensity, but it does not answer whether a facility can operate through drought restrictions, source interruption, water-quality changes, treatment upset, heat wave, utility curtailment, or competing community demand.
A site with a favorable annual ratio can still have a severe peak-season dependency. Conversely, a site with a higher annual metric may have more controllable sources, storage, operational flexibility, and lower community conflict.
The owner needs a time-based water-risk model: when water is needed, from which source, at what quality, under what permissions, with which alternatives, and what operating consequence follows from loss.
Map the Complete Water System
The water system extends beyond a cooling tower. It may include municipal service, wells, reclaimed-water connection, surface-water authorization, makeup, treatment, blowdown, chemical storage, wastewater, fire-water needs, stormwater, and emergency or alternate arrangements.
For each stream, document quantity range, required quality, delivery point, pressure, treatment, storage, permit or contract basis, seasonal limitation, monitoring, owner, and credible failure modes.
Do not assume that a nearby water main means dependable water capacity. Utility allocation, drought-stage rules, quality, treatment, pressure, timing, and competing loads can determine the practical availability.

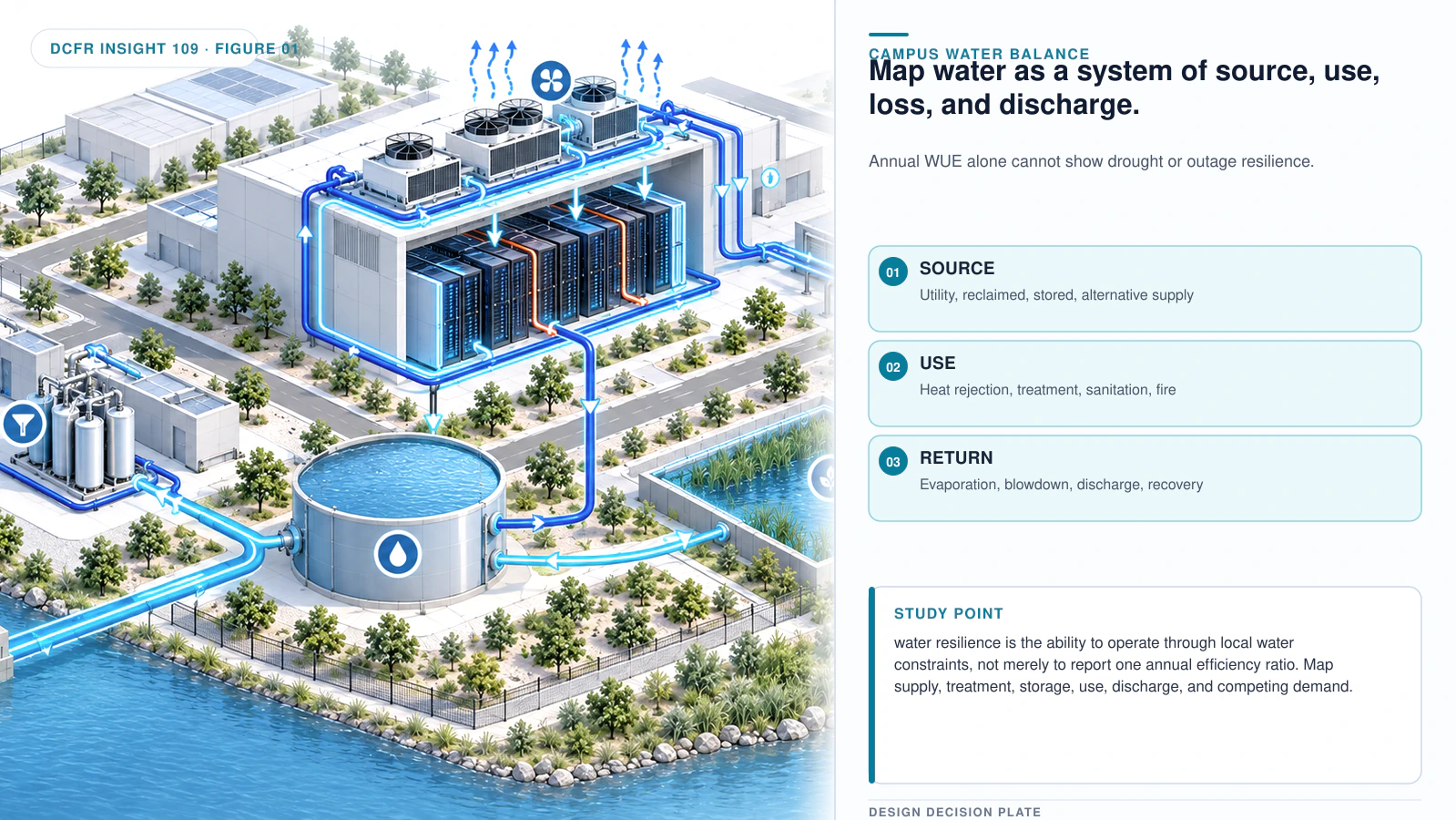

CAMPUS WATER BALANCE
Map water as a system of source, use, loss, and discharge.
Annual WUE alone cannot show drought or outage resilience.
SOURCE
Utility, reclaimed, stored, alternative supply
USE
Heat rejection, treatment, sanitation, fire
RETURN
Evaporation, blowdown, discharge, recovery
STUDY NOTE — EVIDENCE + FAILURE MODE
Study point: water resilience is the ability to operate through local water constraints, not merely to report one annual efficiency ratio. Map supply, treatment, storage, use, discharge, and competing demand.
Choose Cooling Architecture With Site Conditions in View
Air-cooled, evaporative, adiabatic, water-cooled, hybrid, and liquid-cooling support systems produce different site-level demands. The architecture must evaluate energy, water, climate, heat rejection, footprint, acoustics, maintenance, water chemistry, and expansion together.
There is no universally correct topology. A choice that reduces water at the plant may change electrical demand, equipment count, site area, noise, or peak thermal behavior. A water-intensive option may be appropriate only where source reliability, community context, and operating controls support it.
High-density compute changes the question further: facility water use must be considered with the technology cooling loop, heat-rejection configuration, and the operational profile of the IT load.
Design for Peak and Restricted Operations
Test not only a typical year but the conditions that create risk: design wet-bulb or dry-bulb periods, drought declaration, low source pressure, water-quality upset, treatment outage, smoke or particulate events, utility outage, and maintenance configurations.
For each scenario, define the operating mode, capacity consequence, time limit, required stored volume, treatment response, operator action, notification threshold, and recovery method.
Storage should be sized from a defined event and operating strategy, not treated as generic resilience. The required volume changes with load, cooling technology, source recovery assumptions, fire-water separation, quality needs, and local regulations.

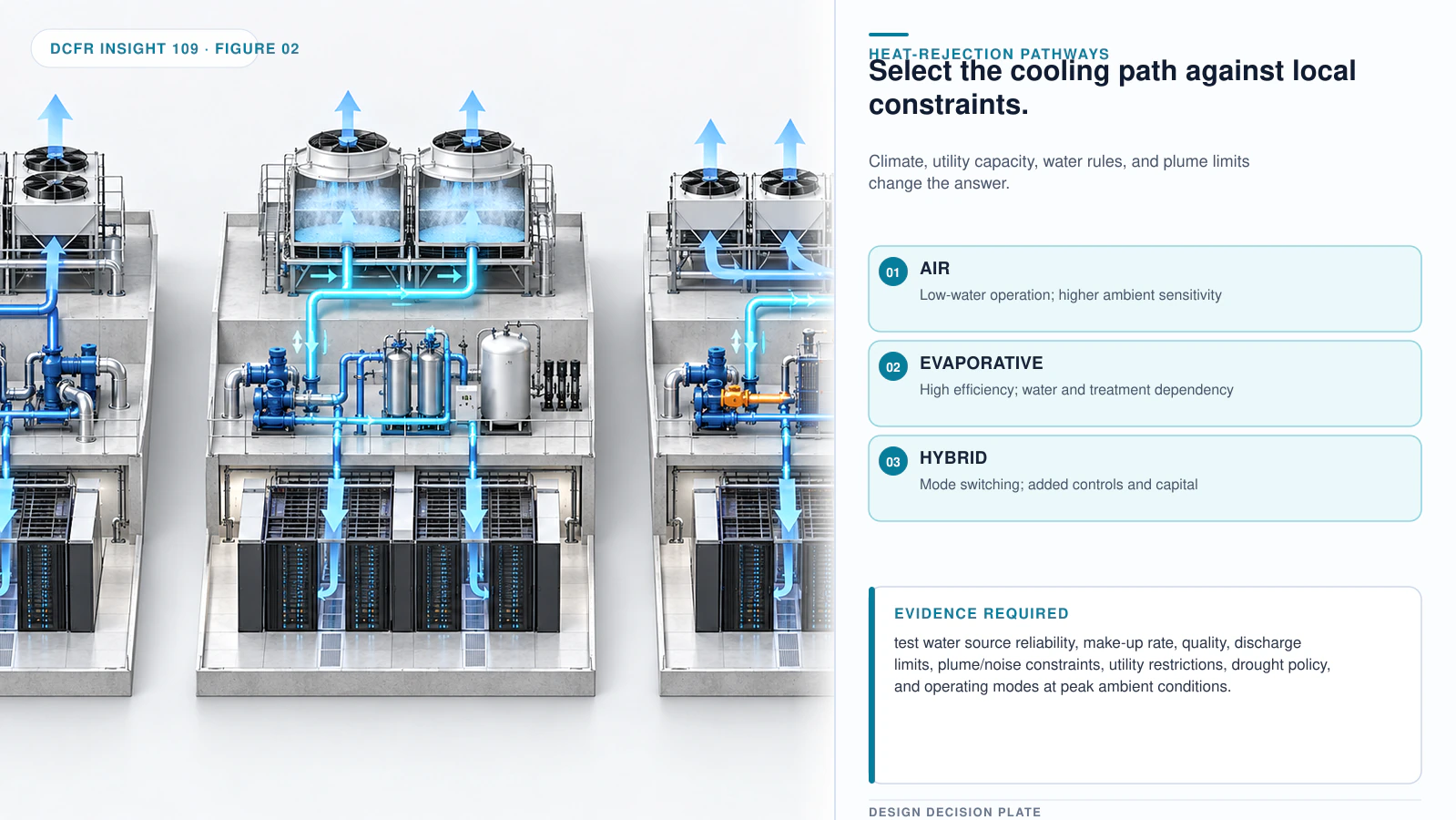

HEAT-REJECTION PATHWAYS
Select the cooling path against local constraints.
Climate, utility capacity, water rules, and plume limits change the answer.
AIR
Low-water operation; higher ambient sensitivity
EVAPORATIVE
High efficiency; water and treatment dependency
HYBRID
Mode switching; added controls and capital
STUDY NOTE — EVIDENCE + FAILURE MODE
Evidence required: test water source reliability, make-up rate, quality, discharge limits, plume/noise constraints, utility restrictions, drought policy, and operating modes at peak ambient conditions.
Treat Water Quality and Blowdown as Design Inputs
Source water chemistry affects scaling, corrosion, biological control, treatment complexity, blowdown, maintenance, and discharge. Water quantity without usable quality is not available cooling water.
Early due diligence should obtain representative water-quality data and understand seasonal variation. The plant layout needs treatment equipment, chemical handling, containment, drainage, sampling, maintenance access, and safe operating procedures.
Blowdown and wastewater pathways require equal attention. Discharge capacity, sewer limits, pretreatment, reuse options, and local requirements can constrain a seemingly simple cooling choice.
Owner-Side Decision Matrix
| Decision | What must be defined | Evidence before release |
|---|---|---|
| Performance basis | Required operating outcome, capacity range, failure and maintenance states | Requirement trace, calculation, test method, acceptance threshold |
| Physical interface | Geometry, tolerance, access, ownership, safety and sequence | Coordinated model/detail, manufacturer data, constructability review |
| Variant boundary | What may vary and what must remain controlled | Applicability matrix, deviation approval, configuration record |
| Lifecycle outcome | Inspection, maintenance, replacement, recovery and future phase implications | Operations review, replacement-path test, commissioning and handover plan |
Make Community and Permit Risk Explicit
Data centers operate in a visible water context. Even a technically adequate source can produce schedule and entitlement risk when public understanding, drought history, competing users, or transparency are weak.
Use credible, site-specific information; distinguish application, allocation, withdrawal, consumption, discharge, and reuse; and avoid generic claims that bypass local facts. Build communication around the actual cooling strategy, operating controls, contingency modes, and public commitments.
The best early decision is sometimes to avoid a water-intensive topology where the permitting or community exposure would exceed its technical benefit.

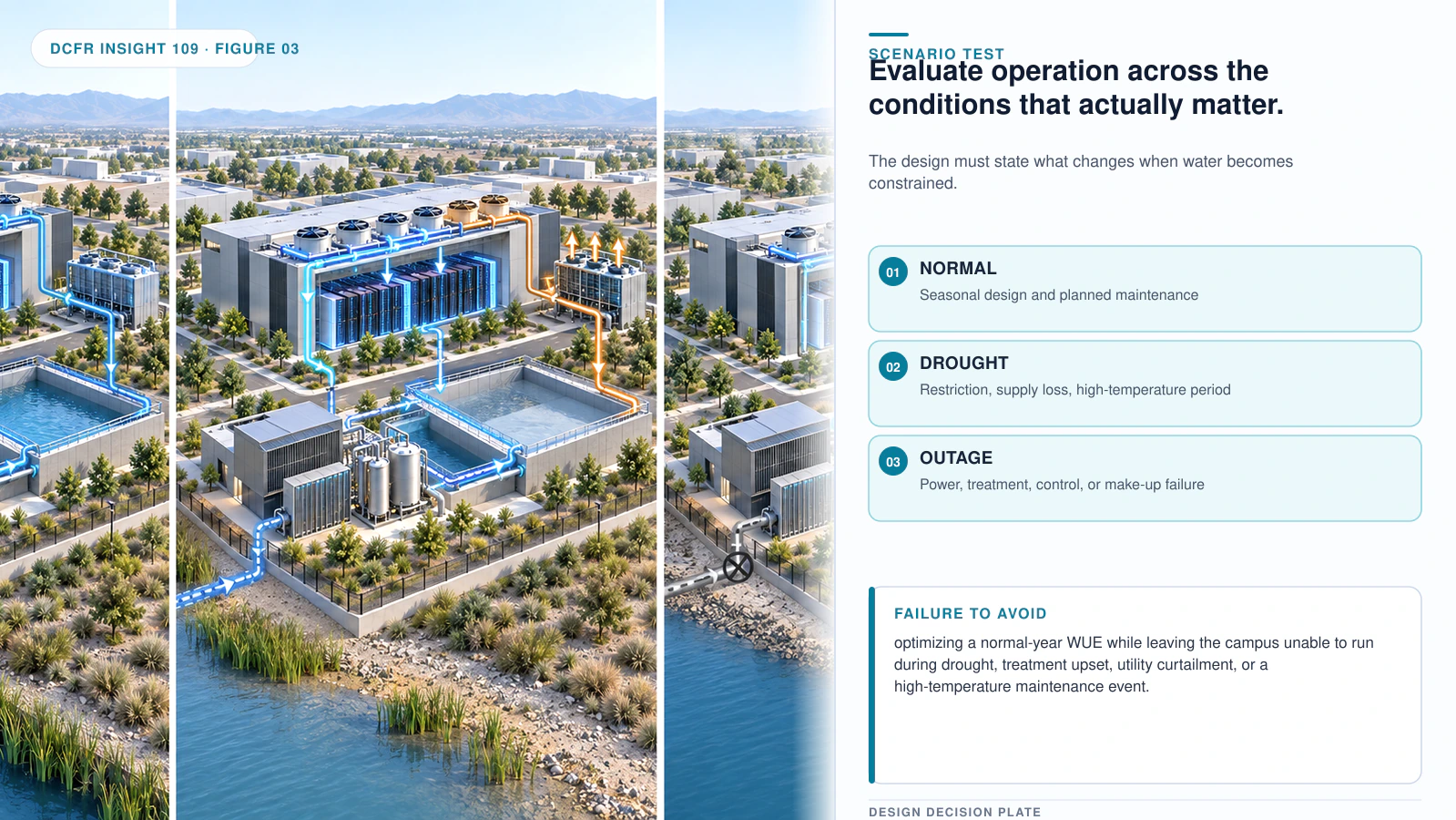

SCENARIO TEST
Evaluate operation across the conditions that actually matter.
The design must state what changes when water becomes constrained.
01 NORMAL
Seasonal design and planned maintenance
02 DROUGHT
Restriction, supply loss, high-temperature period
03 OUTAGE
Power, treatment, control, or make-up failure
STUDY NOTE — EVIDENCE + FAILURE MODE
Failure to avoid: optimizing a normal-year WUE while leaving the campus unable to run during drought, treatment upset, utility curtailment, or a high-temperature maintenance event.
Early screening checklist
What to verify before advancing this site.
- Water sources, rights, quality, delivery and limits are mapped.
- Cooling topology is evaluated against climate, land, power, water, noise, and expansion.
- Peak, drought, outage and maintenance scenarios are tested.
- Storage and alternate modes have a defined duration and trigger.
- Treatment, blowdown, discharge and chemical handling are planned.
- Permit and community risks are treated as feasibility inputs.
What DCFR would flag
Risks surfaced at the screening stage.
DCFR should screen source evidence, cooling-water exposure, drought and local limitations, but never infer guaranteed allocation, quality, or approval from a nearby utility asset.
Professional confirmation required
Items requiring licensed validation.
Planning-grade guidance only. Final decisions require utility, water-rights, environmental, mechanical, civil, treatment, operations, code, permitting, legal, and AHJ confirmation.
Final takeaway
The resilient water strategy is not the lowest annual number. It is the cooling system that can maintain defined capacity through the conditions most likely to constrain its actual source.
