How I Lead Code-Compliant Data Center Design—Step by Step

A practical architectural method for translating jurisdictional requirements, life safety, fire protection, mission-critical systems, and AHJ expectations into one coordinated data center design.

How I Lead Code-Compliant Data Center Design—Step by Step
Capacity Delivery Deep Dive

Code compliance is a design framework, not a final checklist

I lead code compliance as a continuous design-management process, not a permit-stage audit. For a data center, the code basis influences the usable site, building geometry, fire areas, equipment yards, fuel and battery locations, egress, structural system, envelope, utilities, construction sequence, inspections, and commissioning evidence. The work begins by identifying who has authority, what rules apply, and which project assumptions still require interpretation. Those decisions become a coordinated basis shared by architecture, civil, structural, mechanical, electrical, fire protection, security, controls, vendors, contractors, insurers, and operators. A compliant outcome is not produced by one discipline or one code summary; it results when requirements remain traceable through planning, design, procurement, construction, testing, and closeout.

Twelve-step code compliance strategy for data center design, permitting, construction, and commissioning

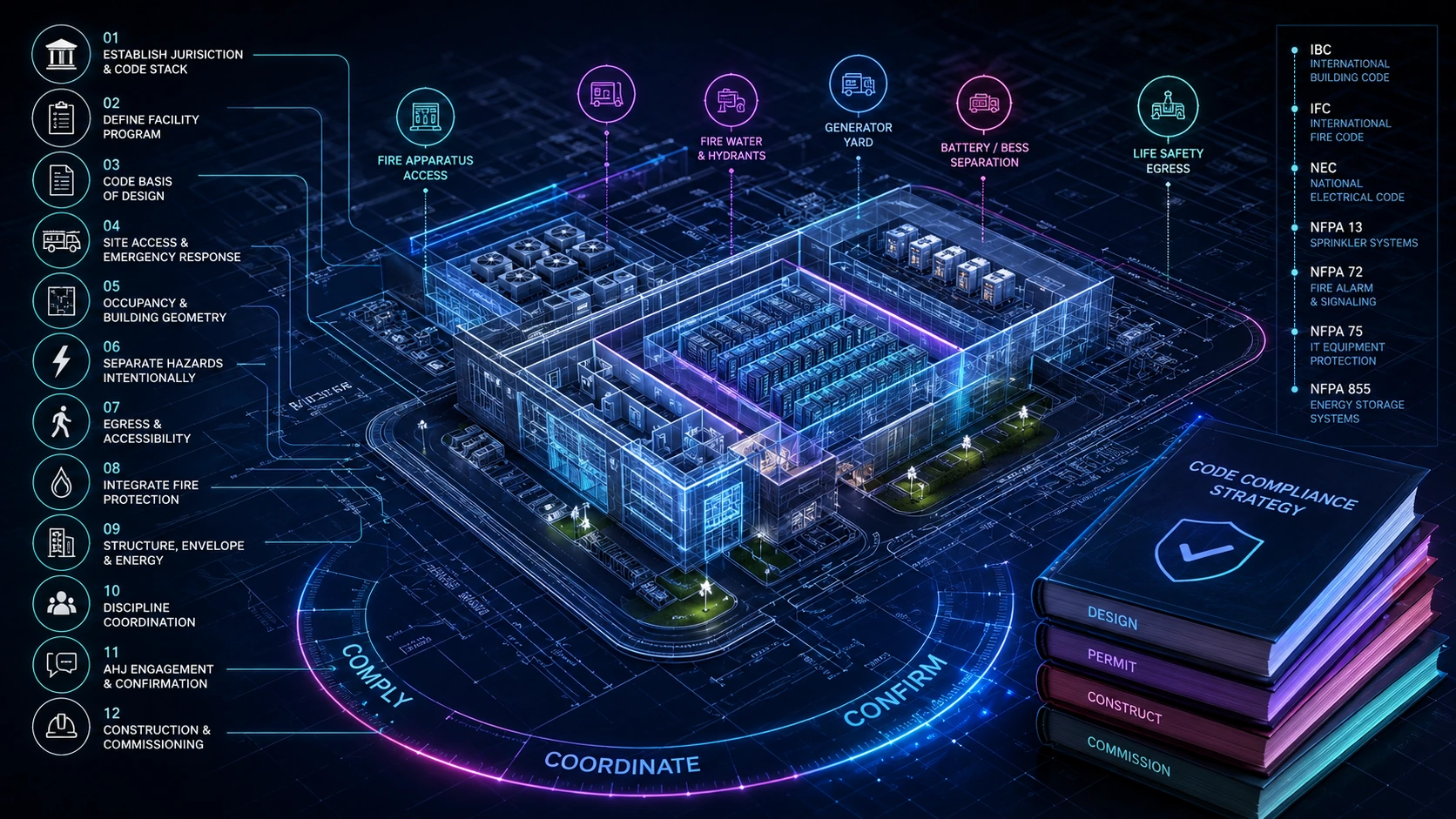

The DCFR code-compliance workflow connects jurisdiction, program, life safety, system coordination, AHJ engagement, construction, and commissioning.

Step 1: Establish the governing jurisdiction and code stack

Confirm the legal parcel, municipality, county, state or provincial authority, fire district, utility territories, environmental agencies, and every Authority Having Jurisdiction before relying on a design premise. Assemble the adopted building, fire, electrical, mechanical, plumbing, fuel-gas, energy, accessibility, zoning, environmental, and referenced standards, including local amendments, adoption dates, administrative provisions, and applicable editions. Identify fire-code permits, hazardous-material reporting, fuel and emissions approvals, utility rules, insurer criteria, and owner standards that may exceed minimum code. Record conflicts and questions rather than silently choosing the most convenient interpretation. The code stack must be project-specific, dated, and assigned to confirmation owners because a model code edition, neighboring jurisdiction, or prior campus approval is not automatically governing authority for the current site.

Step 2: Define the real facility program

Translate the commercial capacity target into the physical and operational program that codes will evaluate. Document IT load and phasing, data halls, offices, storage, loading, repair functions, security, staffing, visitors, roof and yard equipment, substations, transformers, generators, fuel quantity and duration, battery chemistry and energy, UPS rooms, cooling plant, water treatment, chemicals, fire pumps, tanks, warehouses, and temporary construction uses. Capture equipment quantities, ratings, hazardous materials, operating states, maintenance activities, and future expansion—not merely room names. Separate ultimate-campus ambition from each permit phase. Program uncertainty must remain visible because changes in battery technology, fuel inventory, generator arrangement, occupancy, or building subdivision can alter fire areas, separation, detection, suppression, ventilation, spill control, access, and land demand.

Step 3: Prepare a Code Basis of Design

Create a Code Basis of Design that converts the code stack and program into explicit architectural criteria. It should state jurisdiction, editions and amendments, occupancy groups, accessory and incidental uses, construction type, allowable area and height method, frontage or sprinkler increases, mixed-occupancy approach, fire-area and control-area strategy, required separations, structural and fire-resistance basis, egress assumptions, accessibility scope, plumbing-fixture basis, energy pathway, fire-protection concept, emergency responder provisions, and special inspection or commissioning obligations. Include plans and diagrams, not text alone. Maintain an assumption and interpretation register with source, responsible professional, AHJ status, decision date, affected documents, and change trigger. The basis is a controlled design input that evolves with approved decisions; it is not a substitute for sealed calculations or final AHJ approval.

Step 4: Test zoning, site access, and emergency response first

Before optimizing the building, test whether the site can legally and physically support it. Confirm use permissions, setbacks, height, lot coverage, landscape and buffer requirements, property-line exposure, easements, flood and environmental limits, noise controls, lighting, and screening. Lay out fire-apparatus roads with verified width, clear height, grade, turning geometry, dead-end provisions, gates, security interfaces, aerial access where required, staging, hydrants, fire-department connections, and all-weather load capacity. Establish fire-water source, flow, duration, storage, pumping, redundancy, and utility reliability early. Coordinate access during every construction phase and after future expansion. A campus footprint is not viable if transformers, generators, fences, parking, stormwater, or later phases obstruct emergency response or if the available water system cannot support the selected fire strategy.

Step 5: Establish occupancy, construction type, and allowable building geometry

Classify every material use using its actual function, occupant load, equipment, storage, and hazards. Determine whether uses are primary, accessory, incidental, separated, or nonseparated, and document the consequence of each approach. Select construction type from verified structural materials and required fire-resistance ratings, then calculate allowable stories, height, area, frontage, sprinkler increases, mixed-occupancy limits, and aggregate building area. Coordinate exterior-wall and opening requirements with fire-separation distance and property lines, including anticipated parcel subdivision. Define fire walls, fire barriers, smoke barriers, horizontal assemblies, and fire areas on consistent drawings. Recheck the calculations through phasing: a future connector, mezzanine, equipment platform, roof penthouse, or fit-out can invalidate geometry that appeared compliant in an early single-phase diagram.

Step 6: Separate mission-critical hazards intentionally

Map generators, day tanks, bulk fuel, fill points, vents, transformers, switchgear, batteries, BESS, UPS systems, refrigerants, cooling chemicals, water treatment, and hazardous storage against buildings, property lines, public ways, air intakes, ignition sources, drainage, and one another. Confirm quantity thresholds, listings, fire areas, control areas, separation distances, rated construction, ventilation, gas detection, spill and secondary containment, emergency shutdown, explosion control where applicable, thermal-runaway mitigation, firefighting access, and damaged-equipment removal. Battery chemistry and system listing matter; ‘battery room’ is not a complete code basis. Coordinate civil grading and stormwater so releases do not migrate to buildings or sensitive receptors. Reserve land and replacement routes before vendor selection, while carrying vendor-specific data as a required confirmation rather than inventing precision.

Step 7: Resolve means of egress and accessibility as a complete system

Trace occupants from every normally occupied or service location to a safe public way. Verify occupant loads, number and remoteness of exits, common path, travel distance, dead ends, exit access, stairs, horizontal exits where used, discharge, door swing and hardware, illumination, signage, emergency power, and controlled-access or security interfaces. Include yards, roofs, platforms, equipment rooms, phased areas, and paths used during maintenance. Treat accessibility as an integrated route linking arrival, parking, passenger loading, entrances, security screening, work and support spaces, toilet rooms, drinking facilities, controls, and egress assistance provisions. Coordinate slopes, thresholds, door clearances, protruding objects, lifts, and hardware with civil, interiors, security, and equipment layouts. A route is not compliant if one discipline preserves it while another adds a bollard, gate, pipe, cabinet, or level change.

Step 8: Integrate fire protection with the architecture

Develop detection, alarm, sprinkler or other suppression, standpipe, smoke control where applicable, fire pump, water supply, emergency communications, responder radio coverage, and firefighter access as one architectural system. Provide rooms, risers, valve access, ceiling and underfloor coordination, drainage, test connections, maintenance clearances, and protected pathways. Align suppression zones with fire areas, operational failure domains, and phased turnover. Coordinate clean-agent or preaction concepts with enclosure integrity, pressure relief, detection logic, listings, and the baseline protection required by the AHJ and insurer. Track every penetration and joint through rated walls, floors, roofs, shafts, and exterior assemblies with tested systems and inspection access. Fire protection cannot be deferred as an isolated trade package when it determines room size, water demand, ceiling coordination, commissioning, or permit acceptance.

Step 9: Coordinate structure, envelope, and energy compliance

Reconcile structural fire resistance, risk category, design loads, seismic and wind anchorage, equipment weights, vibration, rooftop loads, penetrations, progressive construction states, and special inspections with the architectural code basis. Maintain continuity where rated assemblies meet structure, exterior walls, roofs, joints, doors, dampers, glazing, and service penetrations. For the envelope, coordinate combustibility, insulation, air and water control layers, thermal bridges, fire propagation requirements, opening protection, roof classifications, and interfaces at louvers and equipment screens. Select and document the adopted energy-compliance path, climate data, envelope values, air leakage, lighting and controls, mechanical and electrical efficiency provisions, commissioning, and any process-load distinctions. Mission-critical operation does not automatically exempt the whole facility, and energy decisions must not undermine condensation control, smoke control, equipment ventilation, or resilience.

Step 10: Conduct interdisciplinary code-coordination reviews

At each design gate, review a shared set of code overlays rather than separate discipline checklists. Compare the code plans, civil access, fire-water model, life-safety plans, rated-assembly matrix, door and hardware data, structural fireproofing, equipment layouts, single-line and mechanical diagrams, hazardous-material inventory, accessibility routes, and phasing plans. Use room-by-room and interface reviews to find transformer clearances crossing fire lanes, ducts weakening rated barriers, cable trays obstructing suppression, security doors changing egress, generators affecting property-line exposure, and vendor skids exceeding assumed quantities. Assign each issue an owner, due date, evidence, drawing location, and closure authority. Reopen decisions when program, equipment, parcel, phasing, or code information changes. Coordination is successful only when the same requirement is represented consistently across specifications, models, schedules, calculations, and procurement documents.

Step 11: Engage the AHJ before the design becomes expensive to change

Plan focused meetings with building, fire, planning, accessibility, environmental, and other relevant officials around decisions with material site, cost, or schedule consequences. Present a concise code basis, annotated diagrams, alternatives, calculations, product or listing information, phasing, and direct questions. Prioritize occupancy and construction approach, fire areas, apparatus access, fire-water supply, battery and fuel strategy, alternative methods, deferred submittals, special inspections, temporary conditions, and phased certificates of occupancy. Record attendees, documents reviewed, comments, action owners, and whether feedback is preliminary or a formal determination. Incorporate outcomes into the controlled decision register and drawings. Early engagement reduces avoidable redesign but does not transfer design responsibility or guarantee permit approval; incomplete facts and later program changes can require renewed review.

Step 12: Carry compliance through construction and commissioning

Convert the approved design basis into submittal controls, delegated-design criteria, procurement requirements, inspection and test plans, mockups, preinstallation meetings, and field observation hold points. Track substitutions and RFIs for their code impact before approval. Maintain rated-assembly, firestopping, door, damper, structural anchorage, accessibility, fireproofing, envelope, alarm, suppression, fuel, battery, and emergency-power evidence with locations and approved systems. Coordinate required third-party and special inspections, AHJ witnessing, integrated systems testing, sequence verification, accessibility review, commissioning, deficiency closure, training, and record documents. Confirm temporary occupancy and phased turnover conditions explicitly. Closeout should provide traceable proof that installed systems match approved criteria and operate together; a permit set alone does not demonstrate construction compliance or readiness for safe operation.

Data Center Code-Compliance Decision Matrix

QuestionArchitectural impactPrimary confirmation
What codes and local amendments govern?Establishes every design criterion, submittal path, and approval assumptionBuilding and fire AHJs with the licensed design team
How is each occupancy classified?Controls mixed-use strategy, separations, allowable geometry, and egressArchitect of Record and building official
What construction type is proposed?Sets permitted materials, ratings, height, stories, and areaArchitect and structural engineer with the building official
Can fire apparatus reach all required locations?Reserves road geometry, gates, aerial access, staging, and phased circulationFire AHJ, civil engineer, and security team
Is fire-water capacity available and reliable?Determines tanks, pumps, mains, hydrants, rooms, and campus landFire-protection engineer, utility, and fire AHJ
How will generators and fuel be arranged?Affects yards, setbacks, ratings, containment, fill access, ventilation, and emissionsFire AHJ, environmental authority, and MEP engineers
What battery and BESS systems are planned?Drives separation, fire areas, detection, ventilation, suppression, and removal routesFire AHJ, fire-protection engineer, electrical engineer, and vendors
Does the complete means-of-egress system work?Controls exits, travel paths, doors, stairs, discharge, security, and site routesArchitect, accessibility specialist, and building/fire AHJs
Are rated assemblies continuous and constructible?Coordinates structure, envelope, joints, penetrations, doors, dampers, and inspectionsArchitect, engineers, testing agency, and contractors
Is the project ready for construction and inspection?Defines deferred work, submittals, hold points, tests, turnover, and evidenceDesign team, contractors, commissioning authority, and AHJs

Capacity-delivery review checklist

What to verify before the next release gate.

  • Adopted codes, editions, and amendments documented
  • All Authorities Having Jurisdiction identified
  • Facility program and phases defined
  • Occupancies and accessory uses confirmed
  • Construction type confirmed
  • Allowable area, height, and stories calculated
  • Fire-area and mixed-occupancy strategy documented
  • Fire-apparatus access and phased routes verified
  • Fire-water source, capacity, duration, and reliability established
  • Generators, fuel quantities, setbacks, and containment coordinated
  • Battery and BESS chemistry, listing, quantity, and separation strategy defined
  • Means of egress traced to the public way
  • Accessible routes, spaces, and interfaces coordinated
  • Detection, alarm, suppression, and responder systems integrated
  • Structural ratings, loads, anchorage, and special inspections coordinated
  • Envelope assemblies and energy-compliance path documented
  • Deferred submittals and delegated-design criteria identified
  • Material AHJ interpretations recorded and tracked
  • Construction inspections, field evidence, and hold points planned
  • Commissioning and integrated systems testing defined
  • Closeout evidence, training, and record documents required

What DCFR would flag

Delivery risks that should be visible early.

DCFR would flag an undefined jurisdiction or adopted code basis, unsupported occupancy or construction assumptions, inadequate fire-apparatus access, missing fire-water strategy, generator, fuel, or battery systems without land or separation allowance, fire areas inconsistent with the proposed building geometry, disrupted egress or accessible routes, sensitive property-line exposure, deferred systems that could materially change the site or building, and major interpretations requiring early AHJ confirmation.

Professional confirmation required

Items requiring project-specific validation.

Final code compliance requires project-specific review and approval by the applicable licensed architects, engineers, fire-protection professionals, accessibility specialists, code consultants, vendors, contractors, utilities, insurers, and Authorities Having Jurisdiction. Planning assumptions must not be represented as permit approval, final engineering, or an AHJ determination.

Final takeaway

Code compliance should not be tested only after the design is complete. It should shape the site, building, systems, discipline interfaces, permitting strategy, construction controls, and commissioning evidence from the beginning.
